What Is Nickel Shell Tooling?
Engineered for Surface Precision. Built to Perform.
Nickel Shell Tooling uses a proprietary chemical vapor process to deposit 99.98% pure nickel onto a heated mandrel—atom by atom—resulting in thin, high-fidelity tooling shells with exceptional surface replication and structural uniformity.
These shells are used as the “showface” in a wide range of mold systems, particularly for parts requiring Class A finishes, tight tolerances, or embedded surface textures. Mounted on a variety of backings—aluminum, steel, or composite—they offer superior thermal control, faster cycle times, and longer tool life than traditional steel or electroformed molds.
When Surface Quality, Thermal Performance, and Precision Matter Most
Nickel Shell Tooling is ideal when your project requires:
- High-definition replication of fine grain patterns, logos, or textures
- Uniform wall thickness for consistent thermal conductivity
- Faster heat-up and cool-down cycles
- Stress-free tooling to prevent distortion
- Lightweight shell structures for press compatibility and handling
- Repeatability across multi-cavity tools or programs
NVD vs. Electroforming
Feature
Nickel Purity
Surface Replication
Quality
Residual Stress
Shell Consistency
Shell Turnaround
Weldability & Repairability
Environmental Impact
Nickel Vapor Deposition
99%
Excellent
Negligible
High (from same mandrel)
2-4 Weeks
Excellent
Closed-loop System
Electroforming
Typically lower (with impurities)
Moderate
High
Variable (from multiple mandrels)
16-30 Weeks
Poor (risk of delamination)
Uses toxic eletroplating bath

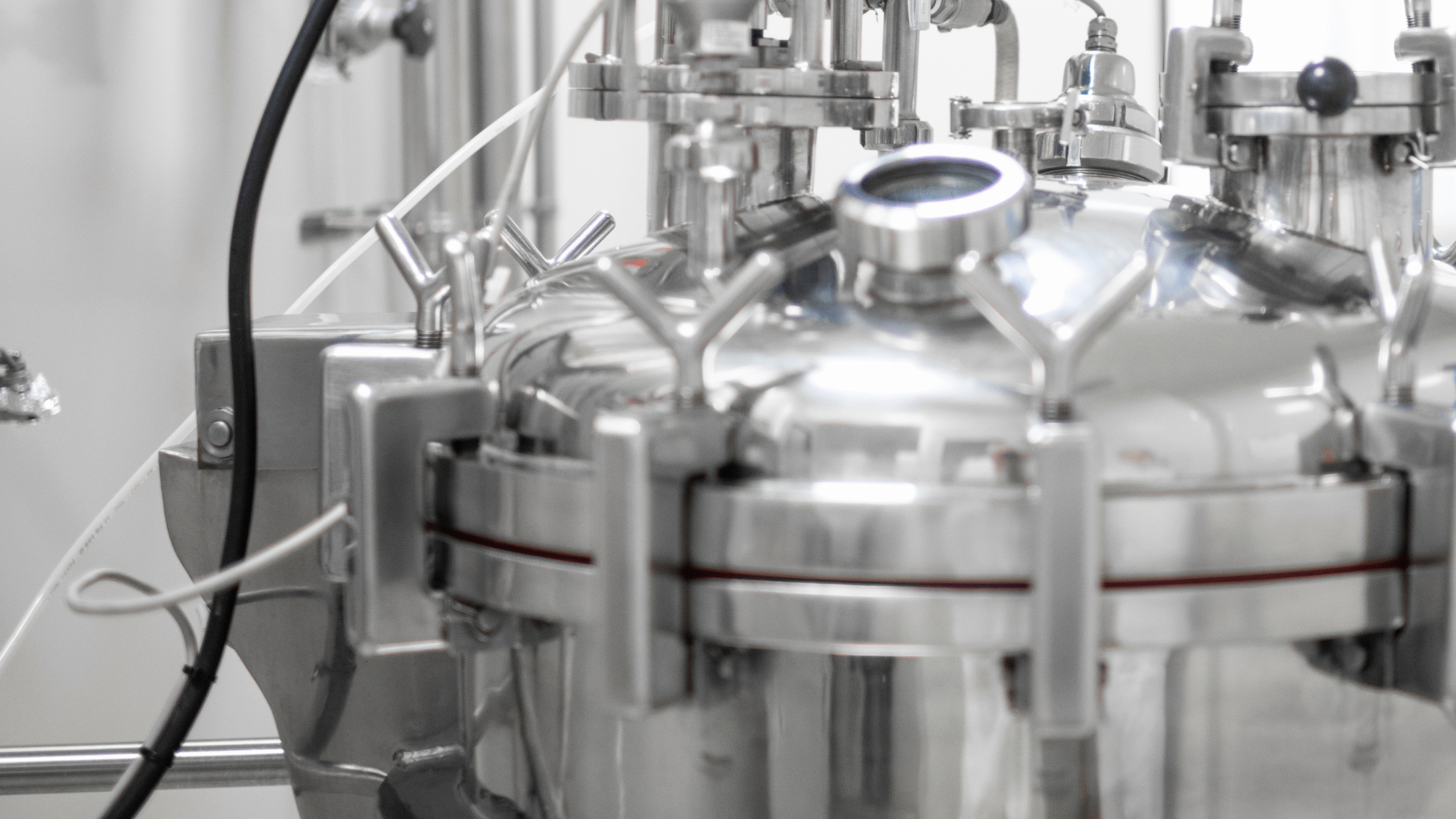

Weber operates the world’s largest fully integrated NVD plant
As the world’s largest fully integrated NVD facility, Weber not only controls the deposition process, but also designs, machines, assembles, and tests every mold in-house. That means better alignment across shell and base, fewer delays, and greater consistency across programs.
What sets Weber apart:
- In-house master model fabrication (steel, epoxy, or wrap)
- Laser-grain validation and texture transfer
- CNC-machined deposition mandrels for repeatability
- Epoxy or solder-based thermal control integration
- Multi-shell programs with tight cavity matching
- Fully assembled and test-run tools in a production-grade tryout facility
Where Nickel Tooling Shines
Automotive Interiors
Instrument panels, door panels, consoles with IMG, IMGL, or slush processes
Consumer Products
Molds for textured parts requiring fine grain accuracy and repeatability
Home & Building Products
Shower surrounds, bathtubs, vanities with fast cycle time requirements
Aerospace
Heated caul sheets, OOA molds with conformal heating
Nickel Shell Tooling—Backed by Full-System Integration
Weber’s strength lies not just in the shell, but in the system around it. Our in-house capabilities allow us to:
→ Design and build complete mold assemblies
→ Integrate vacuum systems, thermocouples, and heating channels
→ Test-run tools in a real production environment
→ Support your team with digital files, quality reports, and field repair options
